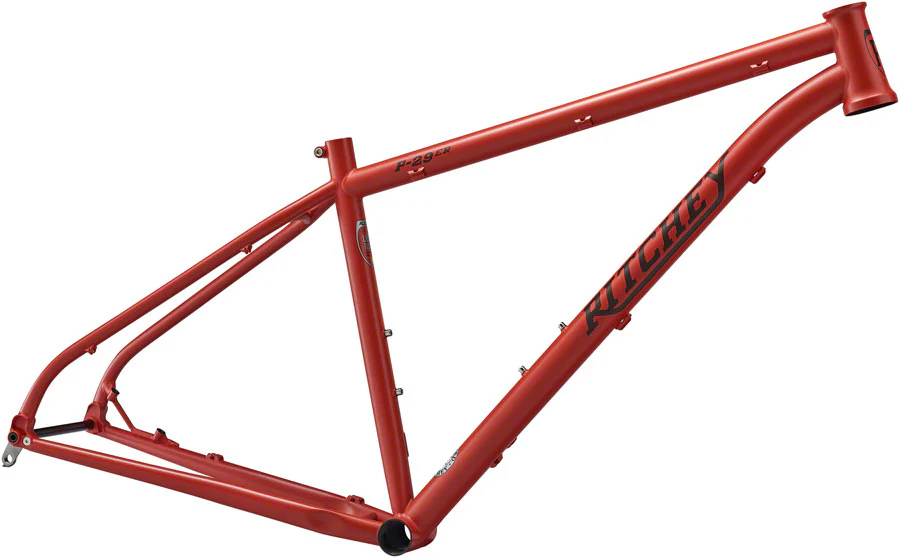

Ritchey P-29er Frameset - 29" Steel Dirt in Blood Small

The P-29er frame is the latest manifestation of Ritchey’s deep heritage in mountain bike history–is designed for ripping tight twisty and technical cross-country singletrack. The P-29er is built with Ritchey’s proprietary triple-butted Logic steel tubing BOOST spacing along with stealthy dropper post routing and an ultralight forged tapered headtube. If fits tires up to 2.3" and is built around a 100mm-travel fork.

Material: heat-treated triple-butted Ritchey Logic steel tubing

Ultra-light Forged and machined tapered headtube

Optimized or use with a 100mm travel boost-spaced (15x110) suspension fork or 500mm axle-crown rigid fork

BOOST 148 x 12mm rear end with replaceable stainless steel derailleur hanger

Post-mount rear brake: 160mm (180mm max - adaptors available separately)

Headset: WCS headset included (upper IS42/28.6 | lower IS52/40)

Recommended tire size: 29x2.25 (2.3 max) (depending on tire/rim manufacturer)

Bottle cage mounts: Two (one on downtube and one on seat tube) *Note: one on size S

Designed for 1X chainrings

27.2mm seat tube with stealth dropper routing

Bottom Bracket: 73mm English

Rear Axle	12mm Thru x 148mm
Brake Type	Disc
TT (Effective)	564
Fork Type	Not Included
Frame Material	Steel
Frame Type	Rigid
Color	Dirt In Blood
Mfg Size	Small
Platform	P-29er
Wheel Size	29"
Defined Color	Red
Size	Small
