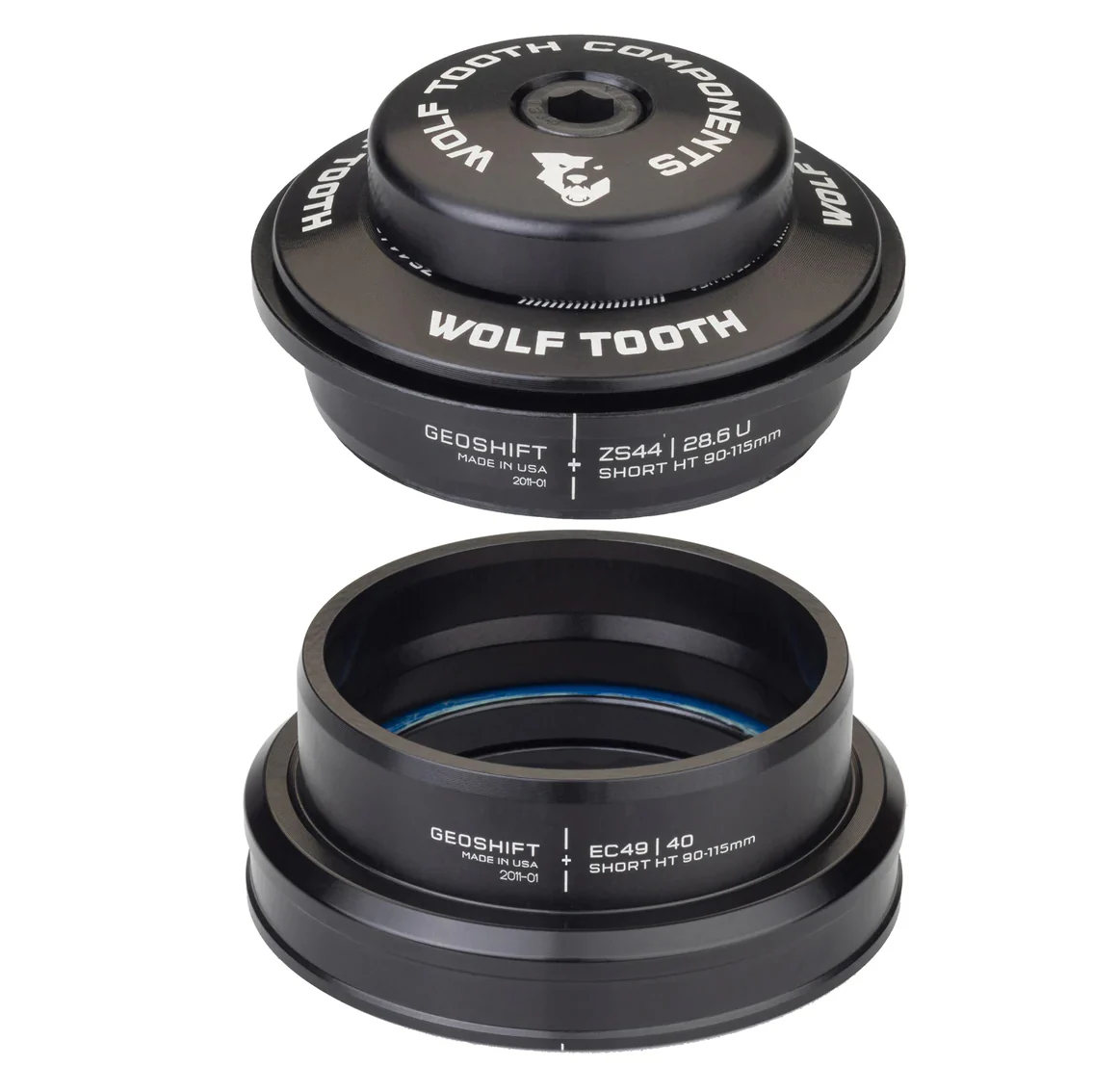

Wolf Tooth Components GeoShift HS ZS44 Upper/EC49 Lower (Perf) Long
Wolf Tooth GeoShift Performance Angle Headset - 1 Deg Long ZS44/EC49 Black. The GeoShift Performance Angle Headset allows you to adjust the geometry of your bike by changing the head tube angle available in 1 or 2 degree options. This unique design lets the bearings sit at an angle to align with the steerer tube preventing creaking noises commonly found with angle headsets that feature a spherical design. Reduce the head tube angle to make for slacker geometry and added stability on fast descents or increase the angle using the opposite orientation of the headset to make for steeper geometry and quicker steering with maximum front wheel traction.Enduro black oxide coated chromium steel bearing included on both the upper and lower
Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately)
Machined in the USA with lightweight strong durable aircraft-grade 6061 aluminum
Includes: Upper and lower cups bearings crown race star nut shims stem cap with 5mm integrated spacer and bolt
- TECH SPECS
| Color | Black |
| Lower Stack Height | 12.6 |
| Bearing Type | Cartridge |
| Crown Race | 40 |
| Material | Alloy |
| Defined Color | Black |
| Upper Stack Height | 6 |
| Stack Height | 19.1 |
| S.H.I.S Upper | ZS44 |
| S.H.I.S. Stem Clamp Diameter | 28.6 Threadless |
| S.H.I.S Lower | EC49 |
